Back to DMX512 RGB Running LED Neon Light
DL-N012020 DMX512 RGB LED Neon Light - 1x202mm profile / DC24V / 20.7W/m(max) / IP 67
DL-N012020
1x202mm profile
DC24V
20.7W/m(max)

LED Neon Light

DMX512 RGB LED Neon Light - 1x202mm profile / DC24V / 20.7W/m(max) / IP 67

Model: DL-N012020

DL-N012020 is a flexible LED neon option for dynamic facade lighting and entertainment venues. Share bending direction, color, IP rating, length and quantity for sample advice and quotation. IP 67 versions can be discussed by project.

WhatsApp
Model
DL-N012020
Detailed item code
DMX512 Warranty 5-year, >50000 hours (L70B10) (Not suitable for long-term immersion in water deeper than 0.5m) Operating temperature -20℃ ~ +45℃
Cutting unit
166.7mm(min)
Power
20.7W/m(max)
Operating temperature
-20℃～+45℃
Certification
CE / RoHS / FCC
Standard length
5 meters per roll
Application
Dynamic facade lighting / Entertainment venues
Protection grade
IP 67
Sample
Available for model confirmation
OEM package
Label and packing can be customized
Detail

Product Detail

Side Bend, DMX512 RGBW Running Horizontal Bend, LED Neon Light for professional lighting projects

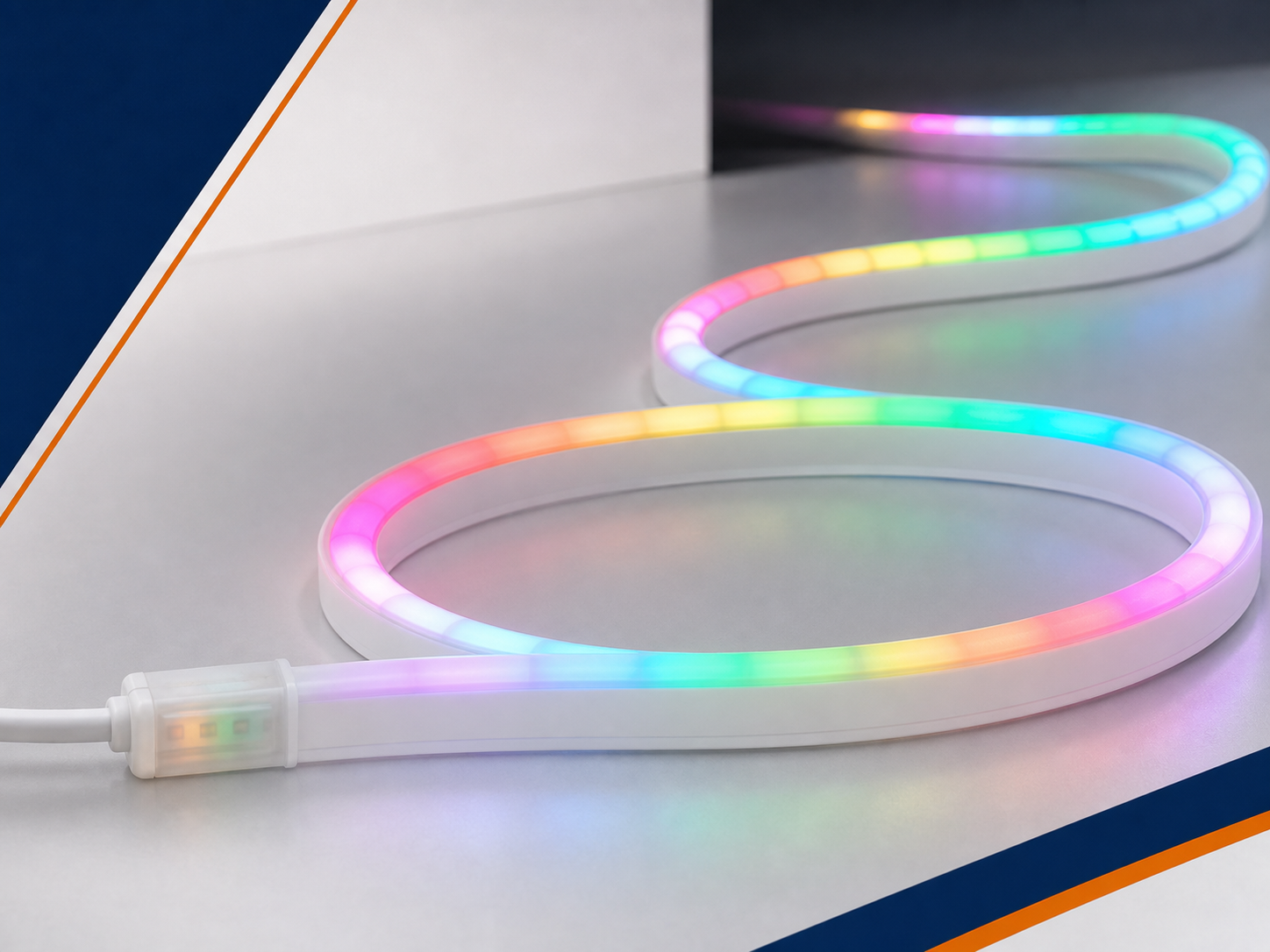

DMX512 RGB running LED neon is made for dynamic color control, pixel effects, animated signage and entertainment or facade lighting scenes. Key product information is organized for project evaluation, sample selection and export quotation discussion.

Flexible silicone body with smooth, continuous neon light output.

Designed for clean curves, signage outlines and architectural decorative lines.

Cuttable sections and project accessories can be matched to installation requirements.

Outdoor-ready versions are available for wet locations and commercial facade projects.

Selection reference

Outdoor facade
IP-rated silicone neon, 24V, suitable bending direction and matched mounting clips.
Storefront signage
Top-bend or side-bend neon profile selected around logo shape, color and cut length.
Dynamic scenes
RGB or DMX512 neon options with controller matching for bars, malls and entertainment projects.

Purchasing Information

For samples, quotation and bulk orders

MOQ
Confirmed by model, color, IP rating and packing request.
Samples
Sample orders are available before bulk production or project rollout.
Lead time
Standard and custom lead time depends on quantity, material status and order details.
Customization
Voltage, CCT/color, CRI, IP grade, length, cable, connector and neon profile can be matched to your project.
Packing
Neutral packing, custom label and OEM carton information can be discussed for distributors.

FAQ

Common questions before quotation

Can I request a sample for DL-N012020?

Yes. Share the required voltage, CCT or color, IP rating and quantity, and Doen Lighting can prepare sample advice for DL-N012020.

What information is needed for a DL-N012020 quotation?

Please send the model, target quantity, voltage, CCT or color, IP rating, roll length or project length, packing request and destination country.

Can DL-N012020 be customized?

Customization can be discussed for voltage, color temperature, CRI, IP grade, length, cable, connector and OEM packing, depending on the selected DMX512 RGB Running LED Neon Light version.

Which certifications can be supported?

CE, RoHS and FCC support can be discussed with model details, order specification and shipment document requirements.

Protection & reliability

Waterproof versions and installation accessories can be selected for indoor or outdoor projects. Certification support is available around CE, RoHS and FCC requirements, depending on the selected model and order specification.

CE
RoHS
FCC

Technical Parameters

Specification reference

Final values are confirmed by selected version.
Parameter
Value
Item NO.
DL-N012020
Size
Profile or silicone size available upon request
Power
20.7W/m(max)
Voltage
DC24V
Light transmittance
51% Minimum cutting 166.7MM
Minimum cutting
166.7mm(min)
CCT
/ Lumen R (80 LM/W) I G (192 LM/W) I B (46 LM/W) I W (232~257 LM/W) Strip options DL-S5050M84V24RGBW-12-DMX512 Pixel.
Lumen/meter
Confirmed by final specification
Strip options
DMX512 RGB Running LED Neon Light
CRI (Ra>)
80+ / 90+ options
IP Rating
IP 67
Beam Angle
110° Weight/meter 266g
Material
Silicone extrusion
Warranty
Warranty terms confirmed by order specification
Operating temperature
-20℃～+45℃
Storage temperature
0℃ ~ +60℃
Certification
CE / RoHS / FCC

Application reference

Dynamic facade lighting
Entertainment venues
Animated signage
Shopping mall scenes
