Back to SMD3014 LED strip light

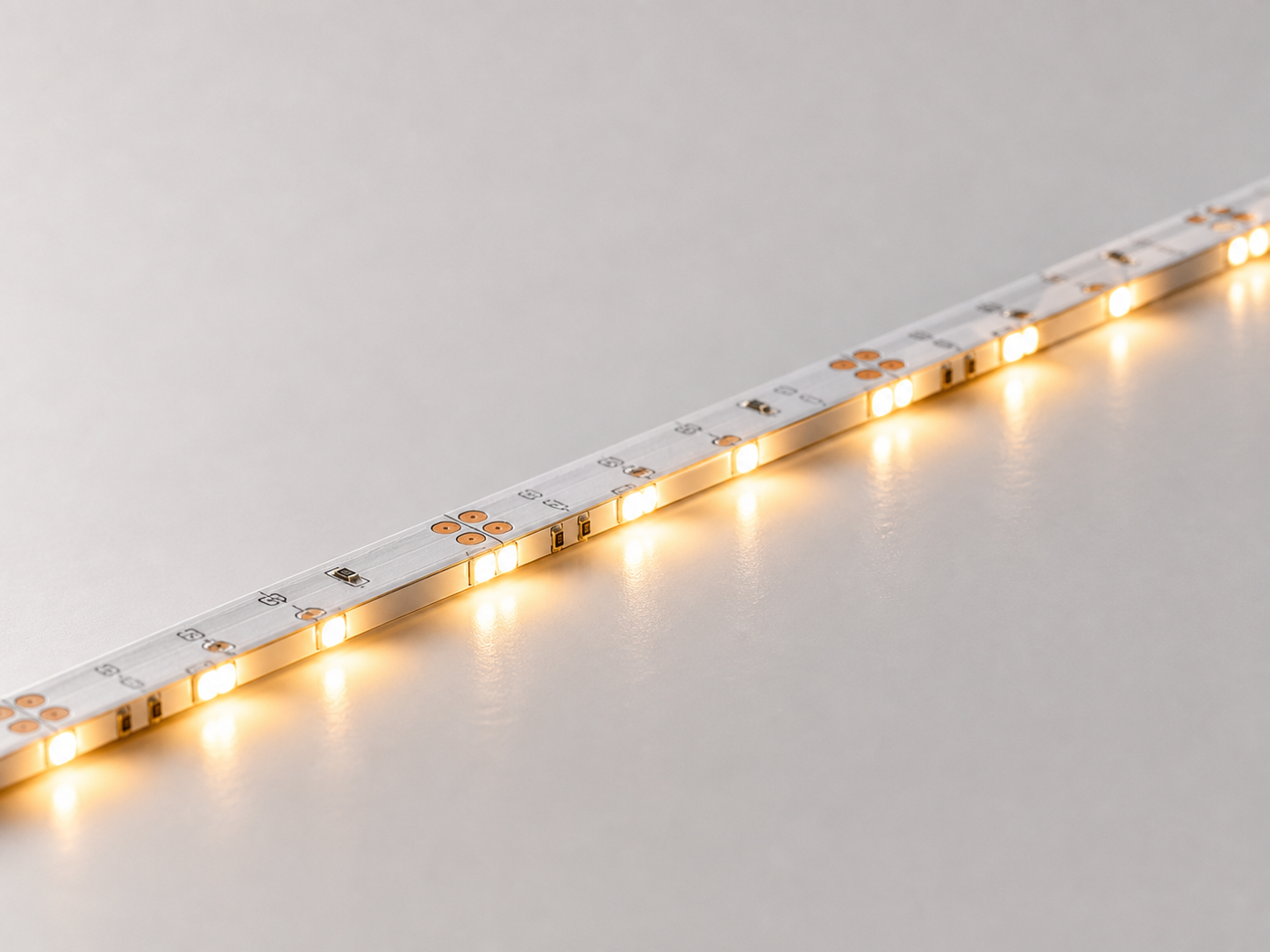

DL-S3014L80V24 SMD3014 LED strip light - 80 LEDs/m / 8mm (0.31in) / 24V DC / 4.8W/m (1.46W/ft)
DL-S3014L80V24
80 LEDs/m
8mm (0.31in)
24V DC

LED Strip Light

SMD3014 LED strip light - 80 LEDs/m / 8mm (0.31in) / 24V DC / 4.8W/m (1.46W/ft)

Model: DL-S3014L80V24

DL-S3014L80V24 is a flexible LED strip option for side-view lighting and edge accents. Share voltage, CCT/color, CRI, IP rating, length and quantity for sample advice and quotation.

WhatsApp
Model
DL-S3014L80V24
Detailed item code
DL-S3014L80V24
Cutting unit
100mm/unit (0.328ft/unit) IP options: IP20/IP55/IP65/IP66/IP67 4.8w/m (1.46w/ft): 2700K-639lm/m (195LM/ft); 3000K-642lm/m (196LM/ft); 4000K-646lm/m (197LM/ft); 6000K-668lm/m.
Power
4.8W/m (1.46W/ft)
Operating temperature
-20℃～+45℃
Certification
CE / RoHS / FCC
Standard length
5 meters (16.4ft) per roll
Application
Side-view lighting / Edge accents
Protection grade
IP20 / IP65 / IP67 options
Sample
Available for model confirmation
OEM package
Label and packing can be customized
Detail

Product Detail

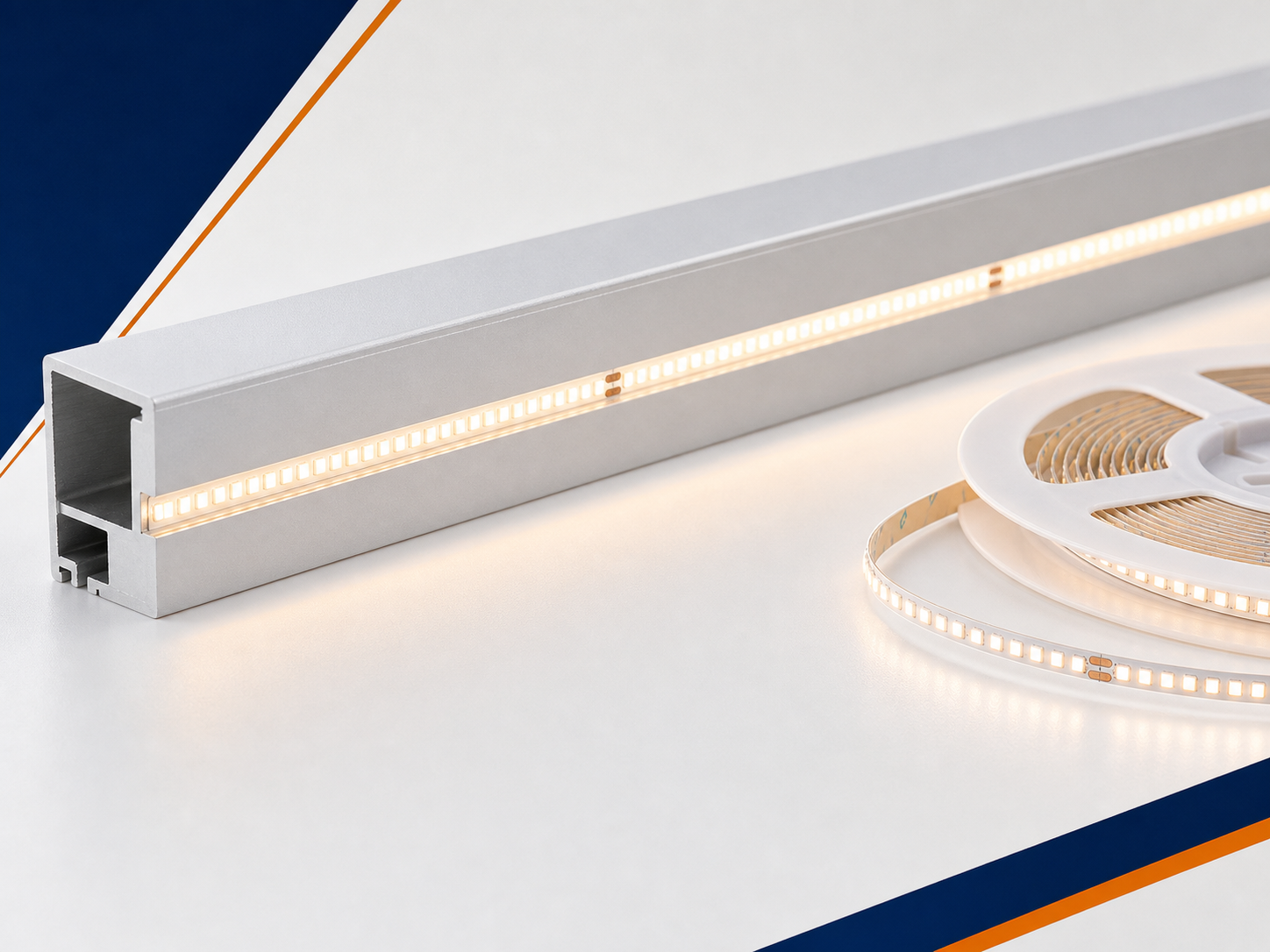

8mm width sideview LED strip light for professional lighting projects

SMD3014 LED strip lights are side-view strips for edge lighting, slim grooves, display outlines and compact decorative lines. Key product information is organized for project evaluation, sample selection and export quotation discussion.

Flexible FPC structure for cabinets, profiles, shelves and linear fixture integration.

Multiple voltage, density, width, CRI and CCT options for project-based selection.

Stable output for commercial lighting, decorative accents and export OEM requirements.

Compatible with aluminum profiles, controllers and common low-voltage power systems.

Selection reference

Cabinet or shelf
COB or high-CRI SMD strips with aluminum profile and diffuser for smooth task lighting.
Long cove runs
24V constant-current or suitable-density strips to help manage voltage drop and uniform output.
Retail display
CRI90 and stable CCT options for product color accuracy and repeat store rollout.

Purchasing Information

For samples, quotation and bulk orders

MOQ
Confirmed by model, color, IP rating and packing request.
Samples
Sample orders are available before bulk production or project rollout.
Lead time
Standard and custom lead time depends on quantity, material status and order details.
Customization
Voltage, CCT/color, CRI, IP grade, length, cable, connector and strip specification can be matched to your project.
Packing
Neutral packing, custom label and OEM carton information can be discussed for distributors.

FAQ

Common questions before quotation

Can I request a sample for DL-S3014L80V24?

Yes. Share the required voltage, CCT or color, IP rating and quantity, and Doen Lighting can prepare sample advice for DL-S3014L80V24.

What information is needed for a DL-S3014L80V24 quotation?

Please send the model, target quantity, voltage, CCT or color, IP rating, roll length or project length, packing request and destination country.

Can DL-S3014L80V24 be customized?

Customization can be discussed for voltage, color temperature, CRI, IP grade, length, cable, connector and OEM packing, depending on the selected SMD3014 LED strip light version.

Which certifications can be supported?

CE, RoHS and FCC support can be discussed with model details, order specification and shipment document requirements.

Protection & reliability

Waterproof versions and installation accessories can be selected for indoor or outdoor projects. Certification support is available around CE, RoHS and FCC requirements, depending on the selected model and order specification.

CE
RoHS
FCC

Technical Parameters

Specification reference

Final values are confirmed by selected version.
Parameter
Value
Item NO.
DL-S3014L80V24
Size
8mm (0.31in)
Power
4.8W/m (1.46W/ft)
Voltage
24V DC
Light transmittance
High transmittance optical structure
Minimum cutting
100mm/unit (0.328ft/unit) IP options: IP20/IP55/IP65/IP66/IP67 4.8w/m (1.46w/ft): 2700K-639lm/m (195LM/ft); 3000K-642lm/m (196LM/ft); 4000K-646lm/m (197LM/ft); 6000K-668lm/m.
CCT
2700K / 3000K / 4000K / 6000K
Lumen/meter
600~700lm/m (183~213lm/ft)
Strip options
SMD3014 LED Strip Lights
CRI (Ra>)
80+/90+
IP Rating
IP20 / IP65 / IP67 options
Beam Angle
120°
Material
Flexible copper FPC
Warranty
Warranty terms confirmed by order specification
Operating temperature
-20℃～+45℃
Storage temperature
0℃～+60℃
Certification
CE / RoHS / FCC

Application reference

Side-view lighting
Edge accents
Narrow grooves
Display outlines
